JPL VISION Mini Webcam

(0) No Reviews yet
$49.95
SKU: JPL-575-354-001-012

New

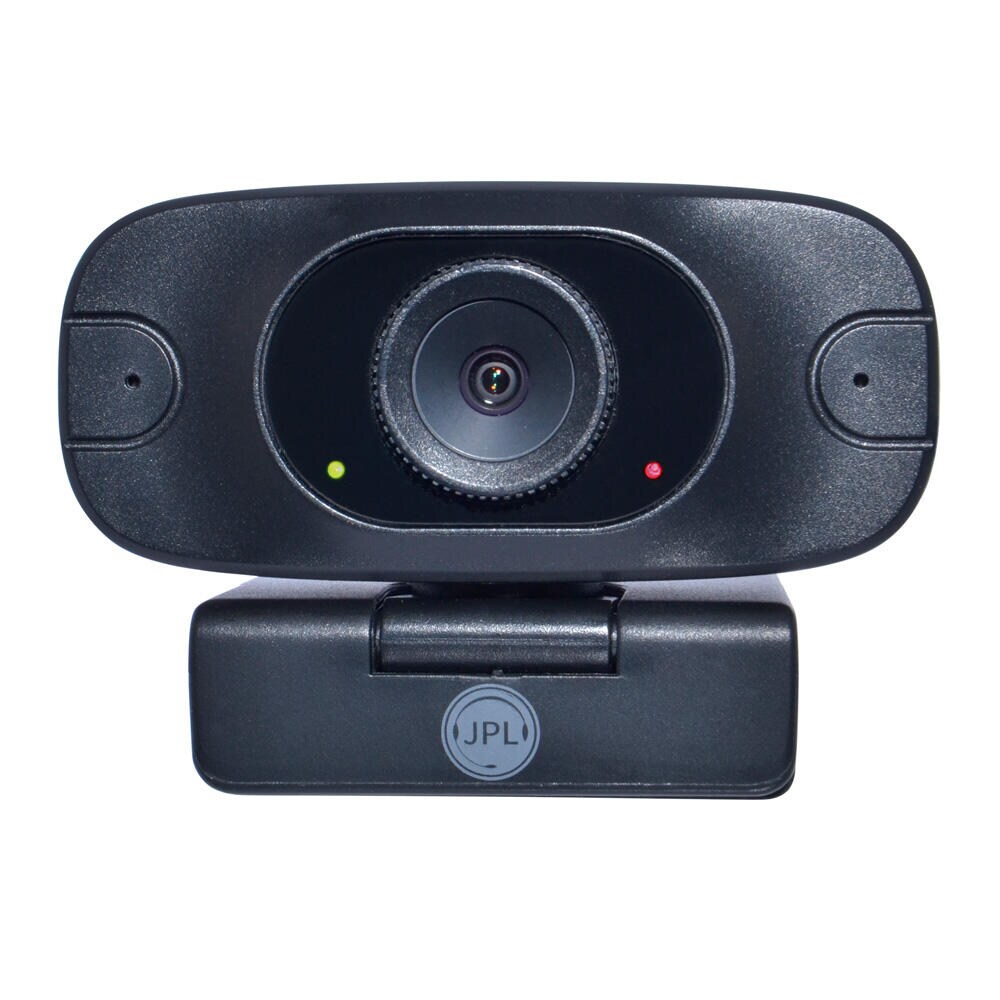

JPL VISION Mini Webcam

1080p Plug-and-Play small form Webcam

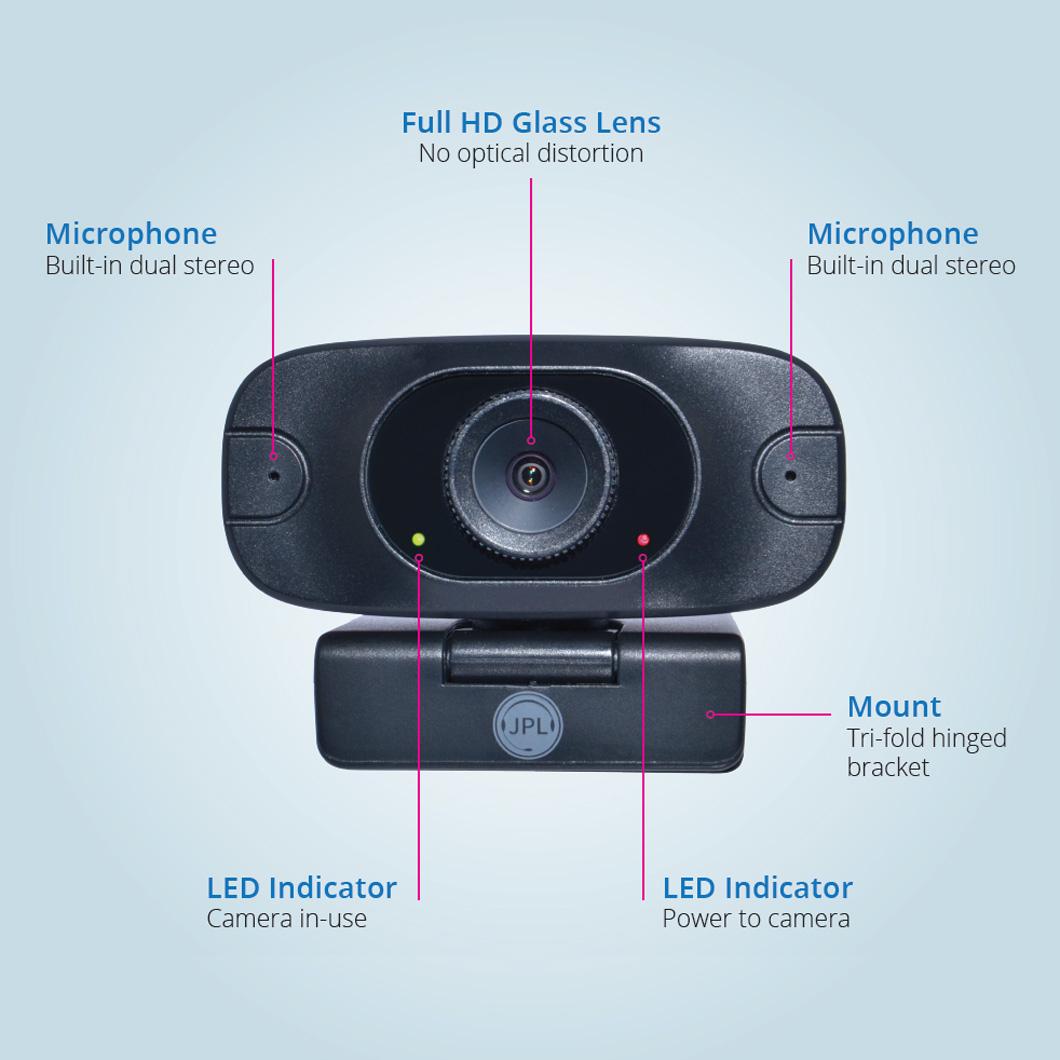

Features
  • 1080p HD 30fps CMOS Camera
  • Plug & Play solution - No software downloads needed
  • Full HD 1080p glass lens - No optical distortion
  • Two microphones - Built in dual stereo
  • 67° Field of view
  • Privacy lens cover included
  • USB-A connectivity
  • Desk mount, monitor mount or tripod option
  • AEC – Automatic Echo Cancellation
  • ANS – Automatic Noise Suppression
  • Compatible with all major softphones. No additional software or downloads needed.

VISION Mini

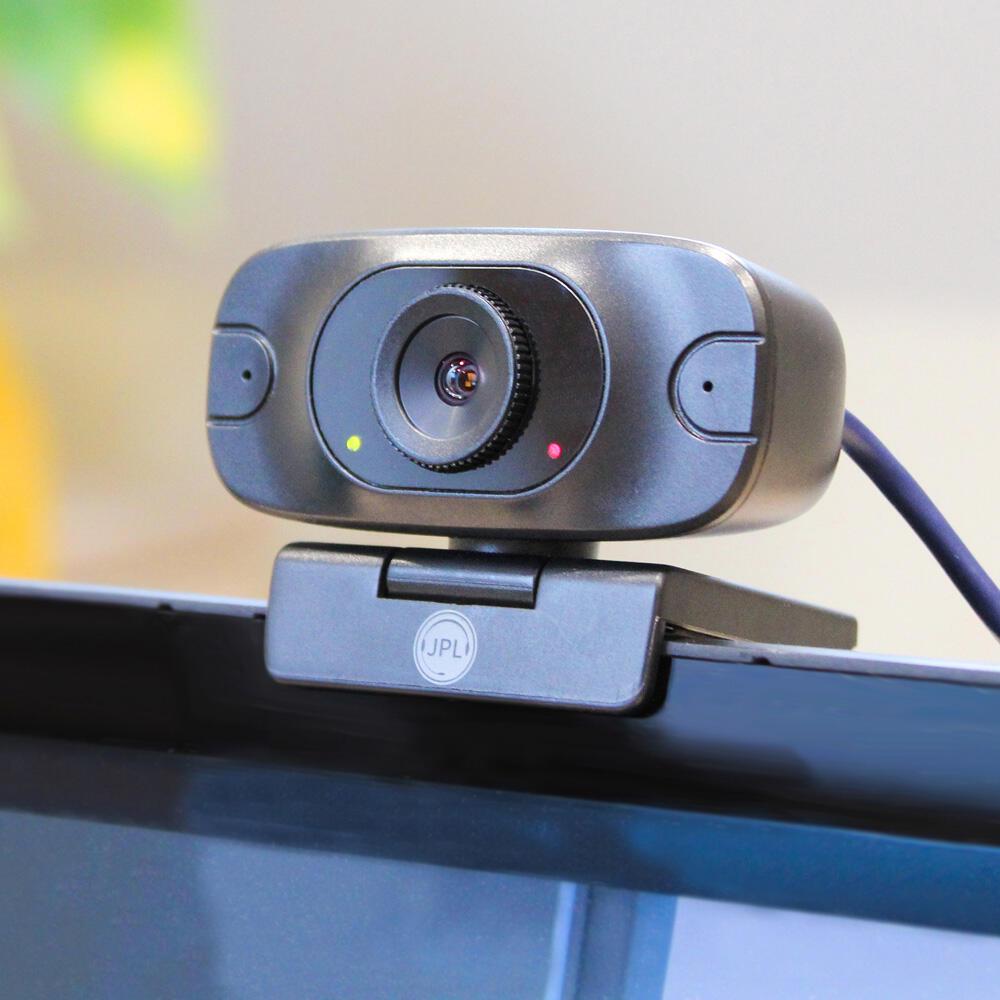

The JPL Vision Mini is our smallest 1080p USB webcam with full HD glass lens. The webcam has a tri-fold hinged bracket with a gripper foot so it can be placed securely above your computer or laptop to allow long distance face to face meetings from your conference room or home office

Original Vision Mini is going EoL and is being replaced by Vision Mini+ you can find it here

Camera parameters:
  • Total Pixels - 2 million pixels
  • Lens size - 1/2.7 inch
  • Aperture - 2.5±5%
  • Image area - 5.85mm x 3.27mm
  • Maximum effective pixel - 1920 (H) x 1080 (V) 2.0 million pixels
  • Output image format - MJPG and YUY2
  • Field of view - 67°(W)
  • AIC - Automatic Exposure (AE) Auto White Balance (AWB) Dynamic Black Level Calibration (ABLC)
  • Resolution - 1920 x 1080 @ 30fps, 1280 x 720 @ 30fps 640 x 480 @ 30fps
Microphone parameters:
  • SNR - ≥60dB
  • Sensitivity - -42±3dB(0dB=1V/pa,1KHz)
  • Far-field distance - 0~2 meters
  • Horizontal voice pickup - Horizontal 180°
  • Communication mode - Full Duplex
  • AIC - Automatic gain control Automatic noise reduction control Automatic echo noise reduction control
Other parameters:
  • Interface type - USB 2.0
  • Voltage - 5V/500mAh
  • OS Support - Win 2000/XP/Vista/Win 7/Win 8/Win 10 Linux with UVC (above Linux - 2.6.26) Mac - OS X 10.4.8 or later Win CE with UVC Android 4.0 or above with UVC
