Logitech Swytch
Logitech Swytch
USB Laptop Link for Video Conferencing 952-000009
Features
With a single USB connection, Logitech Swytch links a laptop to the room’s display, camera, and audio devices. Now, people can use meeting rooms with any video conferencing software, webinar platform, or streaming service.
TURNS LAPTOPS INTO ROOM SOLUTIONSThanks to hidden cabling and a convenient magnetic dock, Swytch keeps every room tidy and organized, even those without dedicated computers. A single connection and straightforward user experience make it easy for anyone to use their personal laptop for team collaboration.
JOIN ANY MEETING FROM EVERY ROOMLogitech Swytch is a BYOM (bring your own meeting) laptop link for video conferencing in meeting rooms, linking a Windows® 10 laptop, MacBook®, or Chromebook to the room’s AV equipment with a single USB Type A or C connection.
Swytch works in rooms with a dedicated computer — including Microsoft Teams Rooms and Zoom Rooms — and in BYOM rooms equipped with a only conference camera and display. Simply connect Swytch to the laptop via USB and launch the desired application to enjoy broadcast-quality video and content sharing at up to 4K resolution.
With a one-cable laptop link to a meeting room’s AV devices, Logitech Swytch makes every room ready for any meeting.
SYSTEM REQUIREMENTSMeeting Room Equipment
- Display with HDMI input
- USB conference cameras with speakerphone
Laptop Computers
- USB 3.0 Port (Type A or Type C)
- USB Power Delivery (Up to 60 watts) for compatible laptops that charge via USB Type C
- Operating Systems with DisplayLink Plug and Display™ Drivers, including Windows 10, macOS® 10.15 and later, and Chrome OS™ 75 or later.
Swytch Hub
- Power
- HDMI 2.0 to Display
- HDMI 2.0 to Meeting Room Computer
- USB 3.0 Type A to Conference Camera
- USB 3.0 Type C to Meeting Room Computer
- USB 3.0 Type C to Swytch Extender
Swytch Extender
- Power
- USB 3.0 Type A to Swytch Hub
- USB 3.0 Type C to Swytch Connector
- USB 3.0 Micro B to Swytch Connector

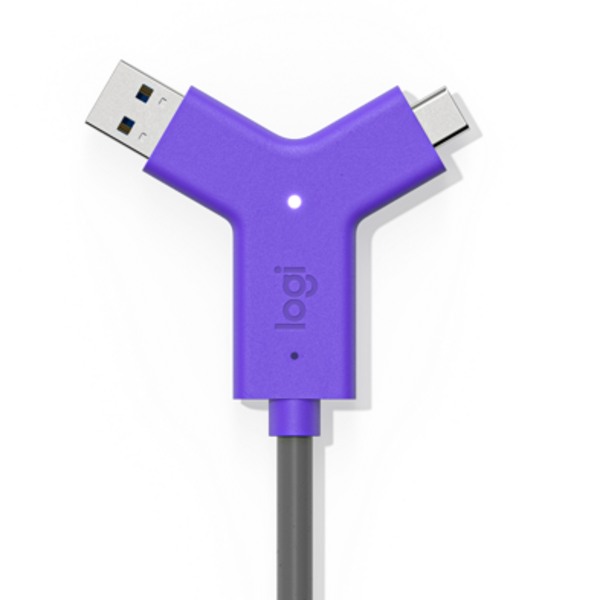

Swytch Connector
- USB 3.0 Type A to laptops with Type A ports
- USB 3.0 Type C to laptops with Type C ports
- Swytch Hub: Compatible with Logitech PC Mount (not included)

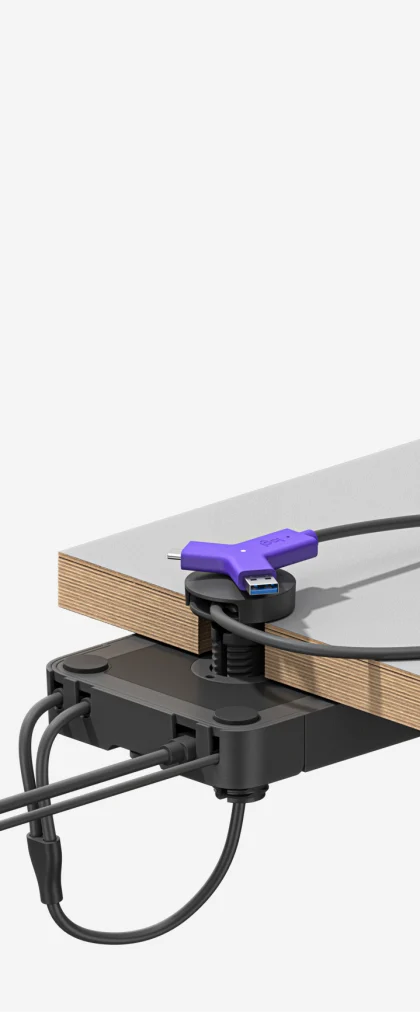

- Swytch Extender: Mount through a 1 in (25 mm) grommet hole or attach below the table with included hardware

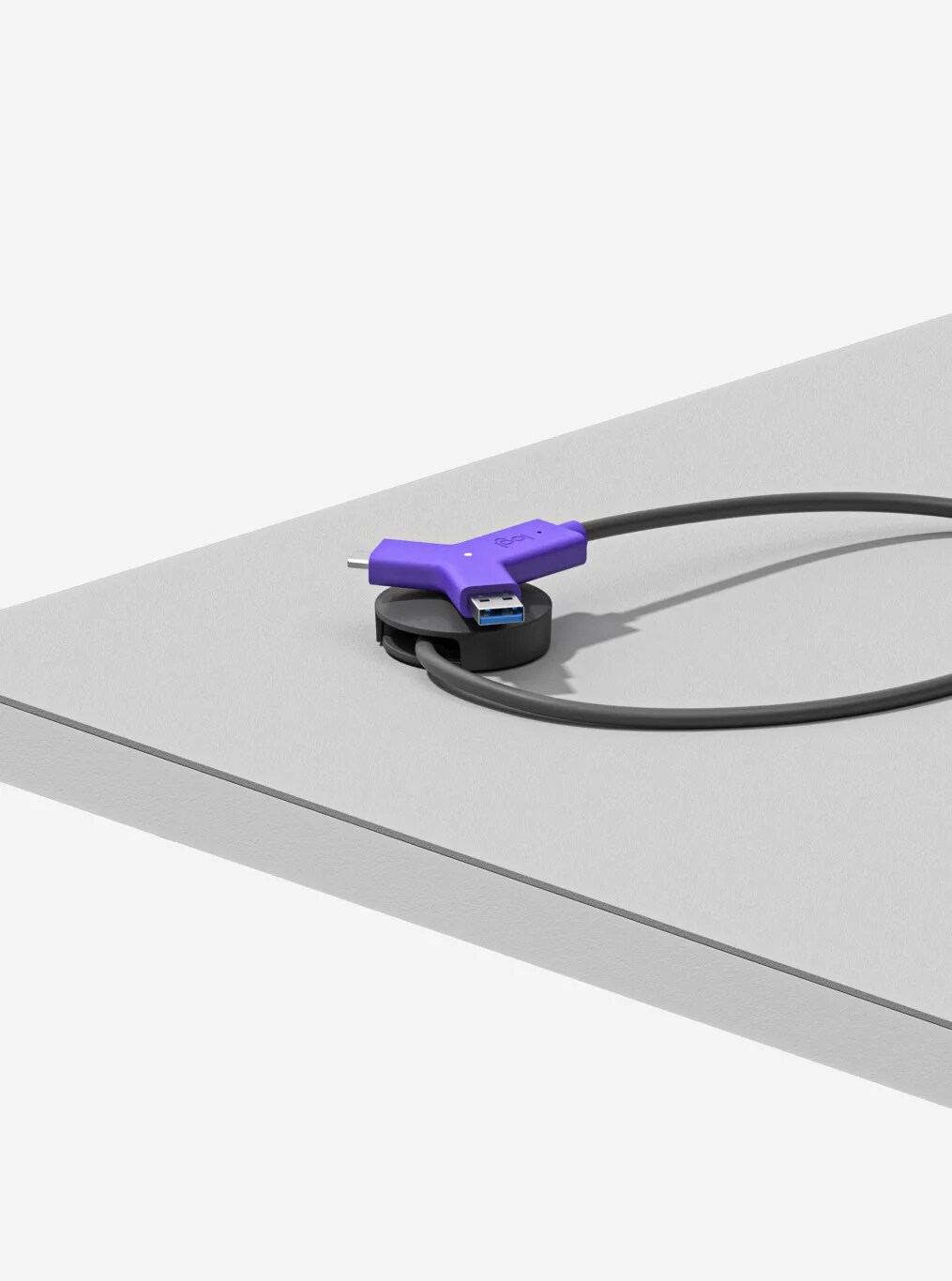

- Swytch Connector: Magnetic dock included
- Number of Meeting Room Displays: 1
- Maximum Resolution and Frame Rate, Display: 4K/60 fps
- Maximum Resolution and Frame Rate, Camera: 4K/30 fps
- Laptop Audio for Local Sharing: Yes
- Laptop Audio for Online Meetings: Yes (with services that support content sharing with system audio)
- Device Management: Remote monitoring and management via Logitech Sync
Conference Cameras
- Works with conference cameras that connect via USB, including Logitech Rally, MeetUp, and GROUP
Room Solutions
- Microsoft Teams Rooms
- Zoom Rooms
- Also compatible with other room solutions that use USB-connected conference cameras and an HDMI-connected display
Cabling
- Logitech Strong USB 10m
- Logitech Strong USB 25m
- Swytch Hub
- Swytch Extender
- Swytch Connector with 4.9 ft / 1.5 m USB Cable
- 100-240v Swytch Hub Power Supply
- 100-240v Swytch Extender Power Supply
- 16.4ft/ 5 m USB 3.0 Cable
- 7.2 ft /2.2 m USB 3.0 Cable
- 6.5 ft / 2.0 m HDMI 2.0 Cable
- Mounting accessories
- Documentation
